Manufacturing industries across the world have begun to appreciate the need for power factor optimization within their electrical systems. Choosing the appropriate power factor correction device can eliminate operational inefficiencies. It is essential for industries to understand the nuances of power factor correction in the wake of rising electricity costs, power availability, and stringent regulations from power supply authorities which, in turn, aids in enabling a competitive edge.
Power factor is the ratio of active power to reactive power in an electrical system, and poor power factor can affect finances of a business. If inductive loads such as motors, transformers, and fluorescent lamps dominate a facility’s electricity profile, the systems as a whole become progressively inefficient. This inefficiency drives a business’s energy costs through the roof, resulting in utility penalties and decreased equipment lifespan.
In order to achieve accurate power factor correction, the first step is to have a facility’s electrical systems and operational requirements thoroughly analyzed and understood. The selection of these parameters within modern industrial systems is the is ever increasing as modern industrial plants face complex challenges.
Understanding Power Factor Fundamentals in Industrial Settings
Power factor correction deals with the difference in voltage and current in AC electrical systems. If this difference becomes larger, more current will be needed to provide useful power to the equipment. The extra current that is flowing will pass through the electrical system, doing no useful work, causing more losses, and lowering system capacity.
Industries and Businesses usually have power factor problems because of the inductive loads as motors and transformers. The electric motors that integrate in most industrial processes draw lagging current, which causes poor power factor. Transformers, welding machines, and arc furnaces are other inductive loads that provide a lagging power factor.
The poor power factor will have a financial impact in other aspects besides energy consumption. Utilities may have a power factor penalty, where they charge extra if a facility is below a specific limit, which is usually set between 0.85 to 0.95. The extra charge can greatly increase the monthly power bill making the equipment needed for correction a good purchase instead of an optional upgrade.
Advanced power quality monitors and analyzers allow engineers to see power factor behaviors in real time for different operational conditions. With this insight, engineers are empowered to make well-informed decisions regarding correction strategies and equipment sizing to optimize performance for varying loads.
Types of Power Factor Correction Equipment
Capacitor Banks: The Traditional Foundation
Fixed capacitor banks in industrial setup still remain to be the most adopted solution for power factor correction. These systems work well in facilities where the load remains relatively stable over time as they offer a specific amount of reactive power compensation. While fixed capacitor installations are reliable, robust, and low-maintenance, they are unable to adapt to differing operational conditions.

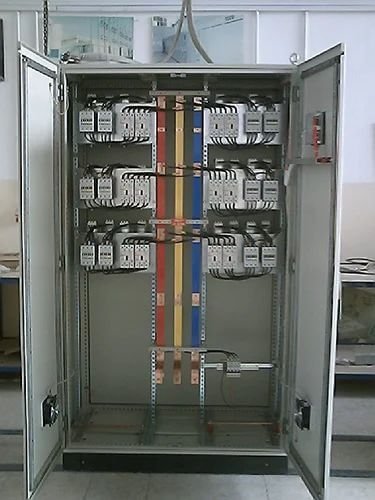

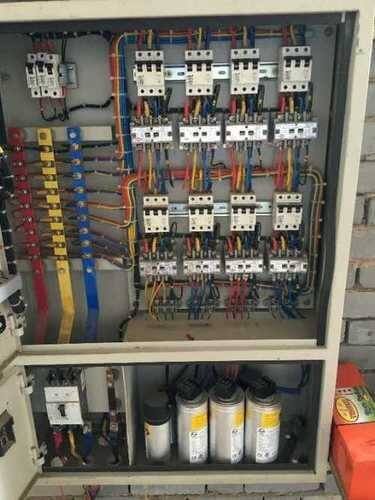

There are also automatic capacitor banks that add switches which activate capacitor steps in response to a specific demand for reactive power. These systems ensure reliable and optimal power factor correction in various operational scenarios as they respond and adapt to different load changes. The more advanced automatic systems also incorporate microprocessors which make automatic switching decisions based on real time data to maintain the set power factor level.
Your electrical system’s capacitor banks need careful planning in regards to the harmonics present. These harmonics can lead to resonance harmonics, which in turn can lead to damages in the capacitors and affect the quality of the power. Today, many systems come with built-in filters that can reduce harmonics, balance power factors, and greatly improve resonance power quality.
Synchronous Condensers: Dynamic Performance Solutions
For large scale industrial plants that have varying demands for reactive power, synchronous condensers provide the best performance. These rotating machines can provide both leading and lagging reactive power, offering exceptional flexibility in power factor management. Synchronous condensers differ from static capacitors in that they have the capability of absorbing reactive power in less-than-optimal load conditions, thus preventing power factor overcorrection.
Synchronous condensers are best for plants that have large motor starting loads or those with rapidly varying loads. These machines can provide slow and steady adjustments to reactive power, which avoids the capacitive bank-switching transients. But as with all rotating machines, the selection process must balance the higher initial and maintenance costs.
With the advancement of technology, modern rotating machines are now equipped with sophisticated control systems that allow them to autonomously connect and disconnect with the rest of the plant. Real-time data of the electrical parameters of the plant such as high and low voltage systems enhances the control systems to adjust the reactive power outputs, thus efficiently managing power.
Static VAR Compensators: Advanced Control Technology
Static VAR Compensators are the most sophisticated Power Factor Correction Devices for diverse and critical Industrial applications. They provide a instantaneous response to changing conditions due to the effective combination of inductive and capacitive reactive power sources with modern control electronics. The reactive power control in SVCs is implemented with thyristor-controlled reactors (TCRs) and thyristor-switched capacitors (TSCs).
Due to the speed with which SVC systems respond to changes, they are best suited for use in industries which use arc furnaces, rolling mills, and large motor drives. These systems are capable of load change response in milliseconds while ensuring stable power factors and voltages even during extreme disturbances. Moreover, advanced control features of the system allow optimization of power quality parameters in addition to simple power factor correction.
The integration of SVC systems poses challenges in protection coordination and system stability. The fast response can interact with the existing protection systems, which requires detailed studies for dependable operation. Still, the precision provided in critical industrial applications due to the controlled reactive power compensates for the added complexity.
Critical Selection Factors for Industrial Applications
Load Characteristics and Operational Patterns
Your facility’s load profile determines how effective correction units or systems will be and will serve as the basis for selection. The continuous monitoring of power factor correction over a period of time reveals the inherently changing nature of reactive power demand. Businesses having a well controlled consistent loading pattern will benefit from fixed system corrections, while businesses having a lot of variables in load will require more sophisticated approaches.
Equipment selection in a facility having variable frequency drives, rectifiers or other non-linear loads has to take into consideration the presence of non-linear loads or other types of variable frequency drives because of the importance of harmonic distortion. Harmonic distortion can lead to early failure of capacitors and lead to the generation of resonance conditions in the system which will result in the amplification of harmonic currents. Most of the modern correction systems are capable of dealing with harmonic filtering because of the need for effective power factor corrections.
Turn on characteristics of the large motors also significantly affect active and reactive power requirement as far as the load period is concerned. The temporary power factor dip accompanied by the motor start is a result of the motor drawing reactive power from a correction capacitor bank which is static. Special starting compensation or dynamic compensation systems are often used to address the dip for businesses that have frequent motors.
Economic Considerations and Return on Investment
Investing in power factor correction devices goes beyond avoiding utility penalties. An efficient power factor reduces current in the electrical system, therefore, reducing the I²R losses, and minimizing thermal stress on the equipment. The reduction in the system’s I²R losses ensures energy savings, which improves the ROI.
Power factor correction devices offer other economic advantages such as the release of capacity. The equipment increases the available capacity of transformers, switchgear, and cable systems by reducing the flow of reactive current. This additional capacity can eliminate the need for electrical infrastructure upgrades, therefore, avoiding the costs for expanding facilities.
When purchasing power correction equipment, the operational costs and initial capital costs must be balanced. More sophisticated systems with advanced functionalities usually require a higher initial investment but offer lower costs in terms of operation during the lifecycle of the equipment. A complete case should consider energy savings, avoided penalties, capacity savings, and lower maintenance cost in the lifecycle of the equipment.
Integration with Existing Systems
Power factor correction calls for a careful consideration of integration with existing electrical systems and facility automation due to system requirements. Modern correction systems communicate with and are capable of being monitored and controlled remotely. This integration captures valuable operational data and enables optimization of correction strategies based on production requirements.
As correction equipment is added to the electrical system, the complexity is increased, making protection coordination more critical. Sensitive electronic equipment is affected by the transient conditions caused by capacitor switching, and protection systems must be coordinated to operate reliably under fault conditions. Comprehensive protection studies make certain that correction equipment added to the system does not compromise system reliability.
Different correction technologies have distinct physical installation requirements. Capacitor banks have specific spacing and ventilation requirements while rotating equipment has specific needs regarding vibration isolation and foundation design. Contaminant levels, humidity, and temperature also have an impact on equipment selection and installation requirements.
Implementation Best Practices and Optimization Strategies
System Design and Engineering Considerations
A thorough investigation of an electrical system’s functions and characteristics is necessary for creating an effective power factor correction system. A power systems study evaluates matters such as harmonics, voltage stabilization, and transients because they factor into equipment selection. These correction systems are designed to provide a benefit and not create new operational issues.
The control strategy and staging for automatic correction systems have significant effects on system performance and equipment durability. Proper control staging allows for responder control, enabling capacitor transients to be minimized during controlled switching as well as responding to load shifts. Well designed control laws can improve power quality and reduce wear by optimizing switch sequence during these load changes.
Power factor correction equipment can be made to maintain their effectiveness via tracking and regular maintenance. Over time, correction effectiveness can be reduced by capacitor degradation, contact wear, and control system drift. Proactive maintenance planning helps maintain system performance by addressing issues before they arise during the equipment lifecycle.
Future-Proofing and Scalability
Modern industrial facilities must consider future expansion and changing operational requirements when selecting power factor correction solutions. Modular system designs enable cost-effective expansion as facility requirements grow, while advanced control systems can accommodate changing load patterns without major modifications.
The integration of renewable energy sources and energy storage systems introduces new challenges for power factor management. These systems can significantly alter the reactive power characteristics of industrial facilities, requiring flexible correction strategies that can adapt to varying generation and storage profiles. Future-ready correction systems incorporate the capability to interface with these emerging technologies.
Smart grid integration represents an emerging opportunity for industrial power factor management. Advanced correction systems can participate in utility demand response programs and provide grid support services, creating additional revenue streams while optimizing facility operations. The selection of correction equipment should consider these future opportunities for enhanced system value.
Conclusion
The choice of power factor correction devices for industrial applications entails consideration of multiple technical, economic factors, and system value. Designing systems with clearly defined load characteristics including harmonic content, the operational requirements of the facility, and programmable logic controllers with algorithms to make decisive action enable systems and make strategic choices that balance optimal performance and cost-effectiveness. The ever-evolving nature of correction technology ensures sustained competitive advantage through the ongoing assessment of correction strategies.
The execution of power factor correction goes beyond simply choosing equipment to system design, installation, and continuous maintenance of the system. In existing correction system integrations, automation systems, along with the infrastructure of the facility, will determine the effectiveness of the operational performance and the reliability performance. As the operational requirements of industrial facilities shift with technological advances, the systems used to provide correction become increasingly important.
